- Marca: MSI

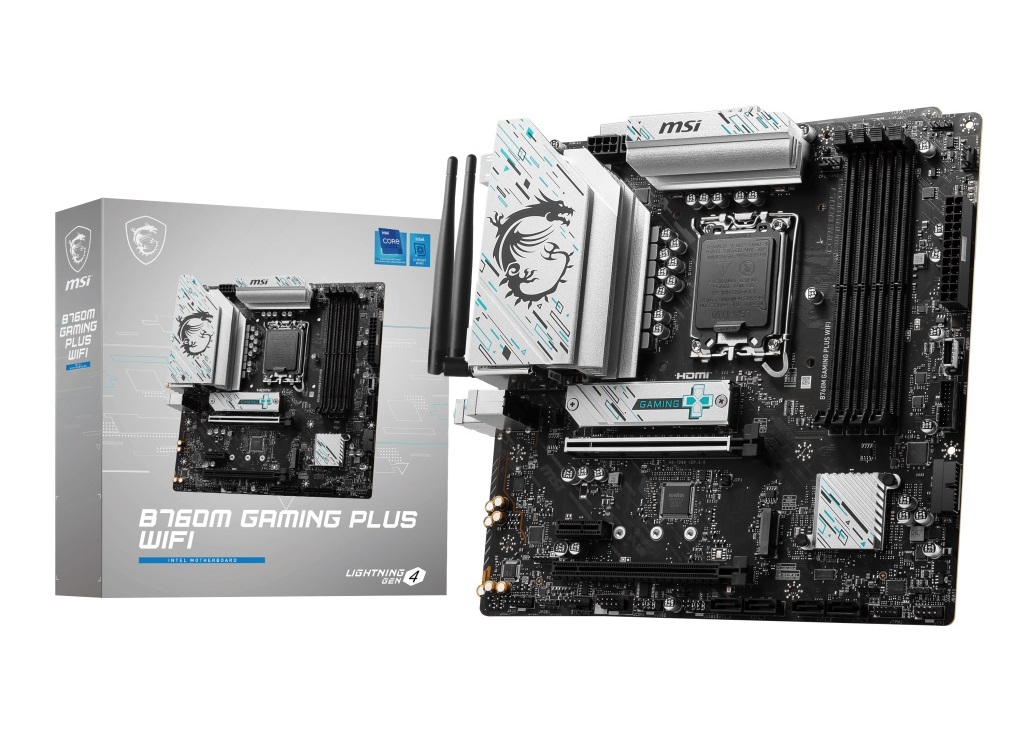

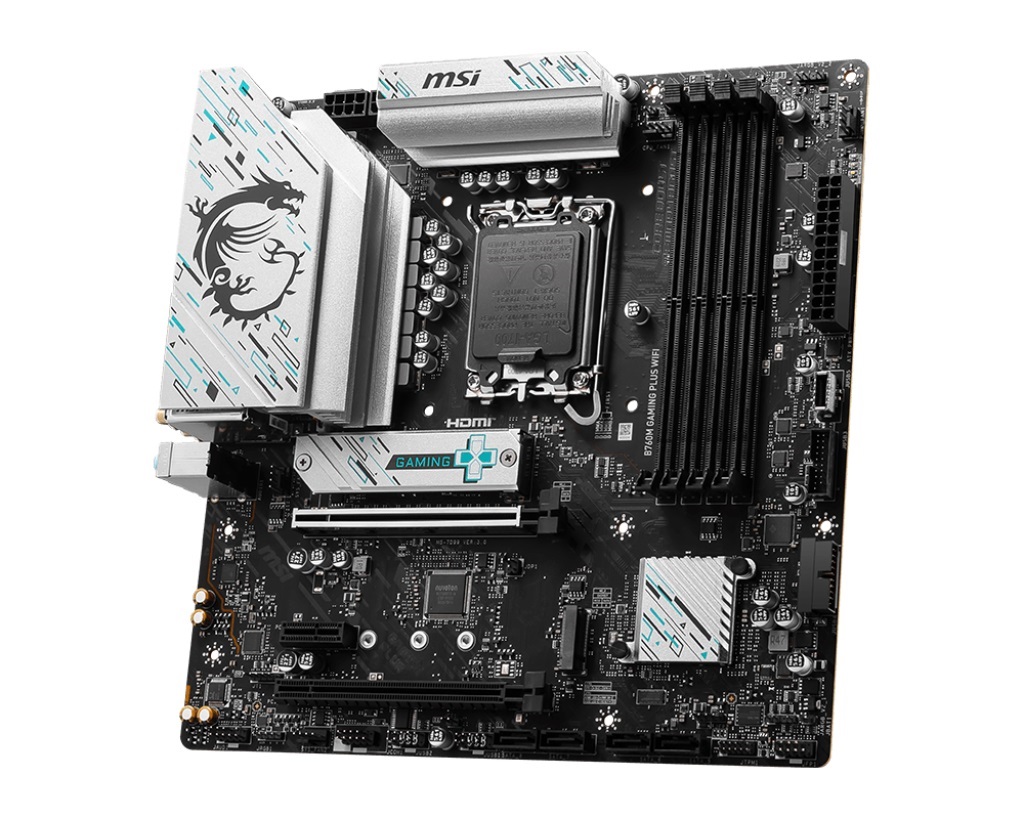

- Modelo: B760M GAMING PLUS WIFI
**Chipset:**
- INTEL B760

**CPU:**
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors- Intel® Pentium® Gold and Celeron® Processors
- LGA 1700

**Memory:**
- 4x DDR5- Maximum Memory Capacity 256GB
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 6800+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC- un-buffered memory

**Audio:**
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio

**Storage:**
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4- supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode- supports 2280/2260/2242 devices
- 4x SATA 6G
- SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

**LAN:**
- Realtek® RTL8125BG 2.5G LAN

**Onboard Graphics:**
- 2x HDMI™ (Support HDMI™ 2.1- maximum resolution of 4K 60Hz*)
- 2x DisplayPort (Support DP 1.4- maximum resolution of 4K 60Hz*)
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

**Slot:**
- 2x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

**RAID:**
- Supports RAID 0- RAID 1- RAID 5 and RAID 10 for SATA storage devices

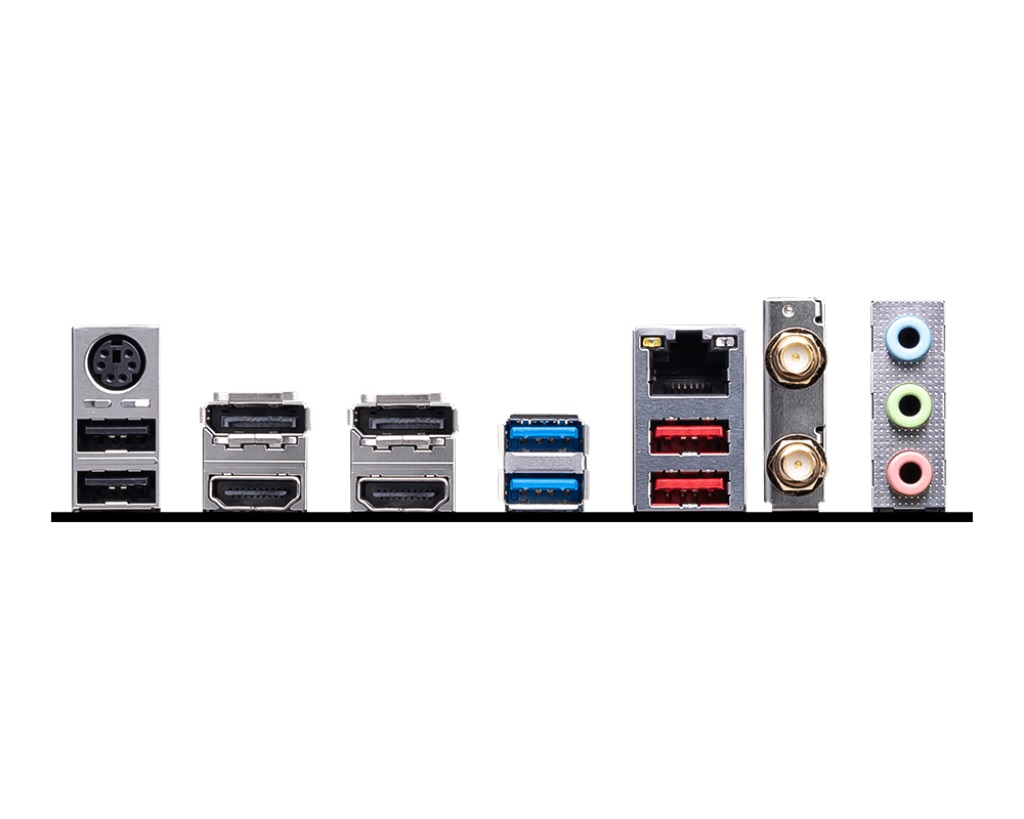

**USB:**
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 1x USB 5Gbps Type C (Front)
- 2x USB 10Gbps Type A (Rear)

**Wireless LAN & Bluetooth:**
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX- 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3- FIPS- FISMA
- *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

**Internal IO:**
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 5Gbps Type C ports

**LED Feature:**
- 4x EZ Debug LED

**Operating System:**
- Support for Windows® 11 64-bit- Windows® 10 64-bit

**PCB Info:**
- Form Factor: mATX (microATX)
- Dimensions: 243.84mm x 243.84mm
