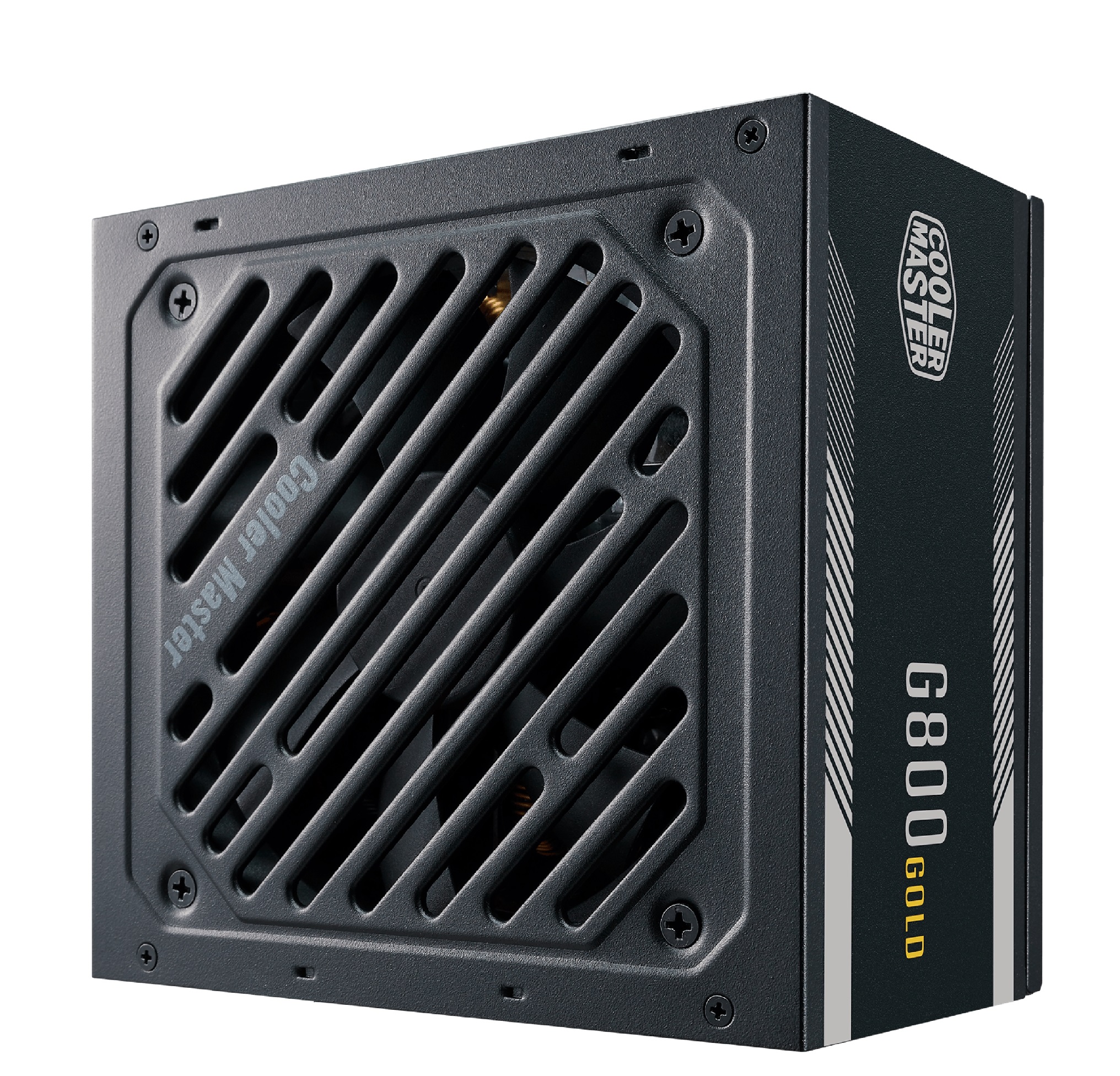

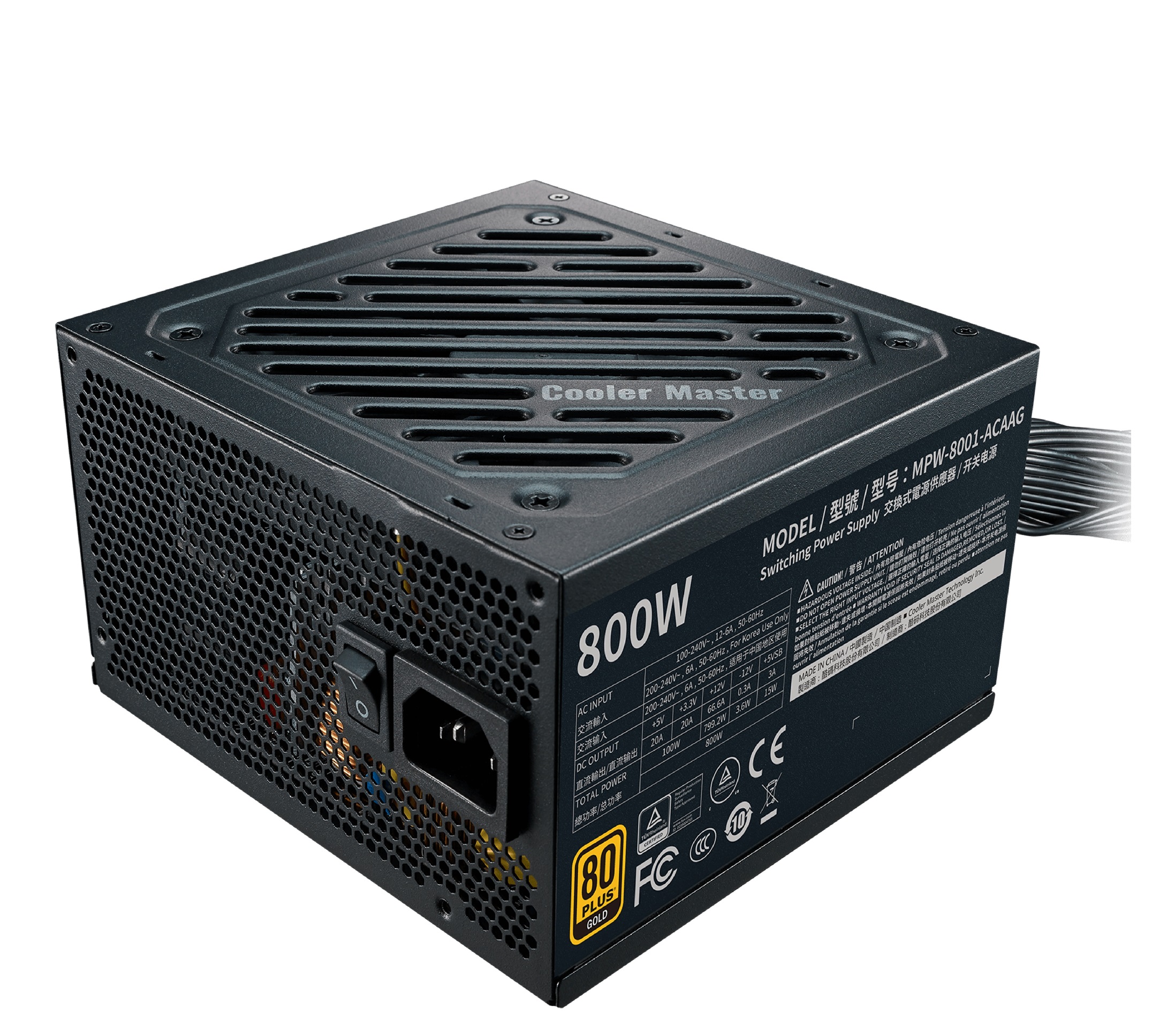

Model MPW-8001-ACAAG
ATX Version ATX 12V V2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 12-6A
Input Frequency 47-63Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Efficiency ?90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 150 ms
Hold Up Time ?15ms at 100% load
MTBF >100-000 Hours
Protections OVP- UVP- OPP- OTP- SCP- OCP
Regulatory CB- cTUVus- TUV- CE- RoHS2.0- FCC- CCC- BSMI- KC+KCC- BIS- EAC
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 6
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 4
Warranty 5 Years
Series G Series
80 Plus Gold
Modular Non Modular
Category Above 750W
